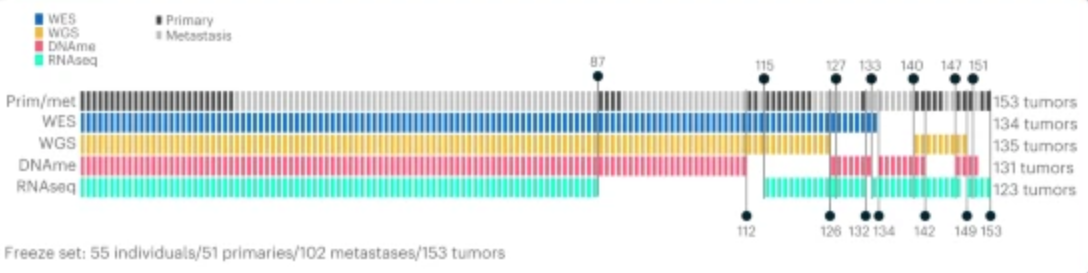

来自文献《Multiomics in primary and metastatic breast tumors from the AURORA US network finds microenvironment and epigenetic drivers of metastasis》中的图1B：

这个图就是给读者展示一下研究队列的一些基本信息，比方说我的队列中一共有多少病人，分别进行了什么组学分析。

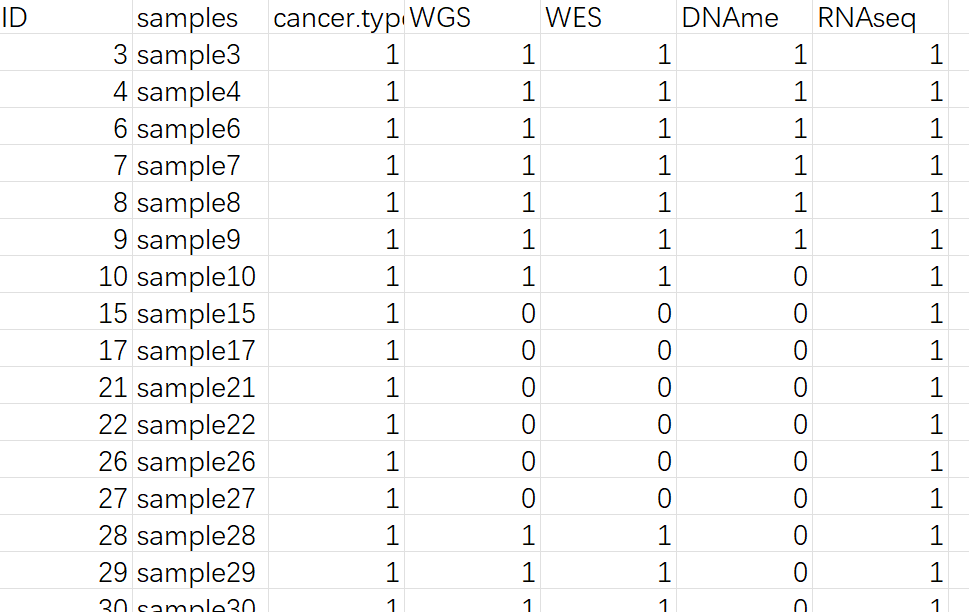

我们假设我们的队列信息表是这样的，1代表有，0代表无。而在癌症类型中，1代表原位瘤，0代表转移瘤。大概如下所示：

那么根据这个表，我们该如何做一个跟上面类似的图反映队列的信息呢？

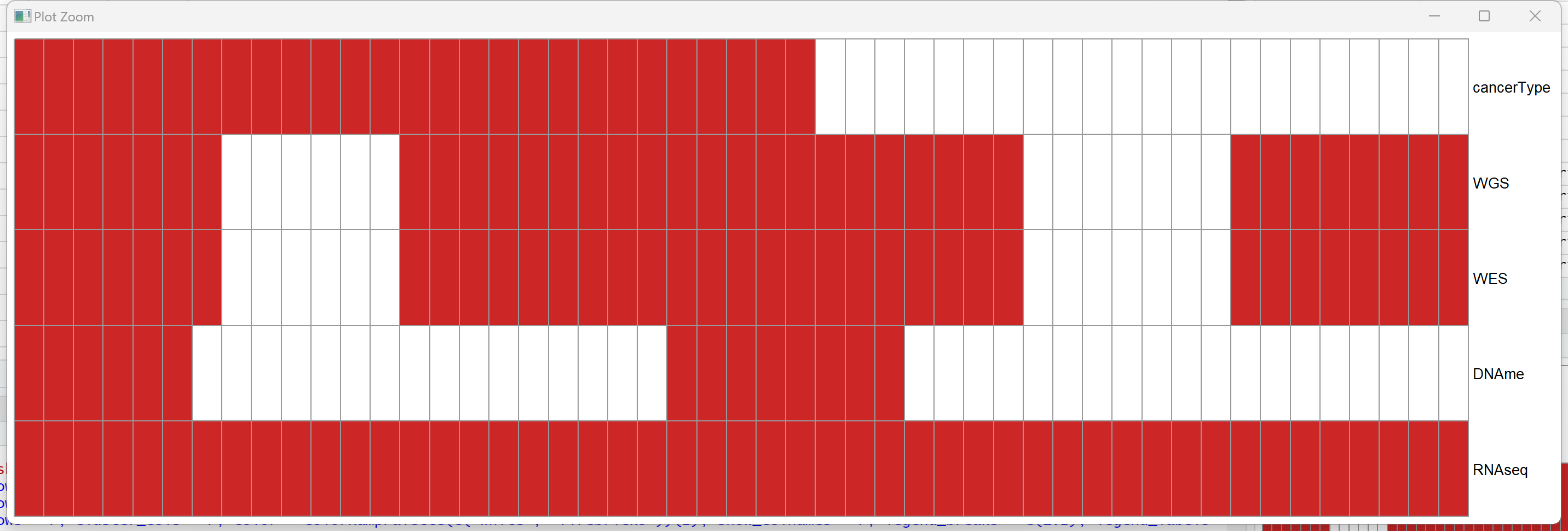

如果你不想折腾的话，那么最简单的就是热图+ppt/ps。比方说使用pheatmap，你大概能得到这样的图：

实现代码也就一行：

pheatmap(<你的数据框>, cluster_rows = F, cluster_cols = F, color = colorRampPalette(c("white", "firebrick3"))(2), show_colnames = F, legend = F)

不过使用热图来实现的话，其实有很多限制。一是不好控制颜色（像上面这样都是同样的颜色，其实挺丑的），字体等等。二是如果要添加删除信息啥的也很麻烦。那我们不如就来试试手动画图？

手动画图我们就得依赖ggplot了（功能实在太全了）。大概思路就是这样，把每一列数据单独做条形图，最后将条形图拼接起来即可。我这里就不做过多解释了，直接上代码：

#注意，代码得结合上面的表来看。如果你的信息表不是上面那样，需要将代码提取数据那部分改一下以适配你的数据表。

library(ggplot2)
library(lemon)
library(ggpubr)
library(gridExtra)
windowsFonts(CG=windowsFont('Century Gothic'))

rd<-read.csv('test.csv', header = T)
names(rd)<-c('ID','samples','cancerType','WGS','WES','DNAme','RNAseq')
ct<-rd[,c(1,2,3)]
wgs<-rd[,c(1,2,4)]
wes<-rd[,c(1,2,5)]
DNAme<-rd[,c(1,2,6)]
RNAseq<-rd[,c(1,2,7)]

p1<-ggplot(data = wgs, aes(x=ID, y = 1, fill = factor(WGS))) +
  theme_classic() +
  theme(axis.text.x = element_blank(),
        axis.title.x = element_blank(),
        axis.title.y = element_blank(),
        axis.text.y = element_blank(),
        axis.line = element_blank(),
        axis.ticks = element_blank(),
        axis.ticks.length = unit(0, "cm"),
        plot.margin = unit(c(0,0,0,0), "cm"),
        legend.position="none"
        ) +
  geom_bar(stat = 'identity', width = 0.6) +
  guides(fill=guide_legend(title=NULL)) +
  scale_fill_manual(values = c('white','#F3B14F'), labels = c('', 'WGS')) +
  geom_text(x = 0, y = 0.5, inherit.aes = FALSE, label = "WGS", check_overlap = TRUE, hjust = 1, size = 10, color = '#626262', family = 'CG') +
  geom_text(x = 65, y = 0.5, inherit.aes = FALSE, label = "xxx Samples", check_overlap = TRUE, hjust = 1, size = 10, color = '#626262', family = 'CG') +
  xlim(-10, 70)

p2<-ggplot(data = wes, aes(x=ID, y = 1, fill = factor(WES))) +
  theme_classic() +
  theme(axis.text.x = element_blank(),
        axis.title.x = element_blank(),
        axis.title.y = element_blank(),
        axis.text.y = element_blank(),
        axis.line = element_blank(),
        axis.ticks = element_blank(),
        axis.ticks.length = unit(0, "cm"),
        plot.margin=unit(c(0,0,0,0), "cm"),
        legend.position="none"
        ) +
  geom_bar(stat = 'identity', width = 0.6) +
  guides(fill=guide_legend(title=NULL)) +
  scale_fill_manual(values = c('white','#176AB8'), labels = c('', 'WES')) +
  geom_text(x = 0, y = 0.5, inherit.aes = FALSE, label = "WES", check_overlap = TRUE, hjust = 1, size = 10, color = '#626262', family = 'CG') +
  geom_text(x = 65, y = 0.5, inherit.aes = FALSE, label = "xxx Samples", check_overlap = TRUE, hjust = 1, size = 10, color = '#626262', family = 'CG') +
  xlim(-10, 70)


p3<-ggplot(data = DNAme, aes(x=ID, y = DNAme, fill = factor(DNAme))) +
  theme_classic() +
  theme(axis.text.x = element_blank(),
        axis.title.x = element_blank(),
        axis.title.y = element_blank(),
        axis.text.y = element_blank(),
        axis.line = element_blank(),
        axis.ticks = element_blank(),
        axis.ticks.length = unit(0, "cm"),
        plot.margin=unit(c(0,0,0,0), "cm"),
        legend.position="none"
  ) +
  geom_bar(stat = 'identity', width = 0.6) +
  guides(fill=guide_legend(title=NULL)) +
  scale_fill_manual(values = c('white','#FC587A'), labels = c('', 'DNAme')) +
  geom_text(x = 0, y = 0.5, inherit.aes = FALSE, label = "DNAme", check_overlap = TRUE, hjust = 1, size = 10, color = '#626262', family = 'CG') +
  geom_text(x = 65, y = 0.5, inherit.aes = FALSE, label = "xxx Samples", check_overlap = TRUE, hjust = 1, size = 10, color = '#626262', family = 'CG') +
  xlim(-10, 70)


p4<-ggplot(data = RNAseq, aes(x=ID, y = 1, fill = factor(RNAseq))) +
  theme_classic() +
  theme(axis.text.x = element_blank(),
        axis.title.x = element_blank(),
        axis.title.y = element_blank(),
        axis.text.y = element_blank(),
        axis.line = element_blank(),
        axis.ticks = element_blank(),
        axis.ticks.length = unit(0, "cm"),
        plot.margin=unit(c(0,0,0,0), "cm"),
        legend.position="none"
  ) +
  geom_bar(stat = 'identity', width = 0.6) +
  guides(fill=guide_legend(title=NULL)) +
  scale_fill_manual(values = c('white','#30FEC5'),labels = c('', 'RNAseq'), limits = factor(c(0,1))) +
  geom_text(x = 0, y = 0.5, inherit.aes = FALSE, label = "RNAseq", check_overlap = TRUE, hjust = 1, size = 10, color = '#626262', family = 'CG') +
  geom_text(x = 65, y = 0.5, inherit.aes = FALSE, label = "xxx Samples", check_overlap = TRUE, hjust = 1, size = 10, color = '#626262', family = 'CG') +
  xlim(-10, 70)


p5<-ggplot(data = ct, aes(x=ID, y = 1, fill = factor(cancerType))) +
  theme_classic() +
  theme(axis.text.x = element_blank(),
        axis.title.x = element_blank(),
        axis.title.y = element_blank(),
        axis.text.y = element_blank(),
        axis.line = element_blank(),
        axis.ticks = element_blank(),
        axis.ticks.length = unit(0, "cm"),
        plot.margin=unit(c(0,0,0,0), "cm"),
        legend.position="none"
  ) +
  geom_bar(stat = 'identity', width = 0.6) +
  guides(fill=guide_legend(title=NULL)) +
  scale_fill_manual(values = c('#464646','#BBBBBB'), labels = c('metastasis', 'primary')) +
  geom_text(x = 0, y = 0.5, inherit.aes = FALSE, label = "Prim/met", check_overlap = TRUE, hjust = 1, size = 10, color = '#626262', family = 'CG') +
  geom_text(x = 65, y = 0.5, inherit.aes = FALSE, label = "xxx Samples", check_overlap = TRUE, hjust = 1, size = 10, color = '#626262', family = 'CG') +
  xlim(-10, 70)


'''

注意这里的逻辑：
1. 需要先将上述5个作图代码中的legend.position = "none"注释掉，然后p1-p5跑一遍。
2. 跑完后通过下面的get_legend()依次获取每个图的图例。并通过grid.arrange合并图例，然后再将legend.position = "none"恢复。
3. 恢复后再次执行p1-p5，然后依然通过grid.arrange来合并。
4. 最后将合并的图例和合并的条形图再整合，完成！

'''


lp1<-get_legend(p1)
lp2<-get_legend(p2)
lp3<-get_legend(p3)
lp4<-get_legend(p4)
lp5<-get_legend(p5)
lgs<-grid.arrange(lp5,lp2,lp1,lp3,lp4, ncol = 5, nrow = 1)

g1<-grid.arrange(p5,p2,p1,p3,p4, ncol = 1, nrow = 5)



png('test.png', units = 'in', width = 14, height = 3, res = 300)
grid.arrange(lgs, g1, ncol = 1, nrow = 2, heights = c(0.8, 2.8))

dev.off()

这段代码还是很丑的，更简单的方法就是直接写个函数，省的一段代码复制好几遍。Anyway，能完成任务就行，哈哈哈，反正只是画图，也不是搭应用，所以不需要考虑性能。

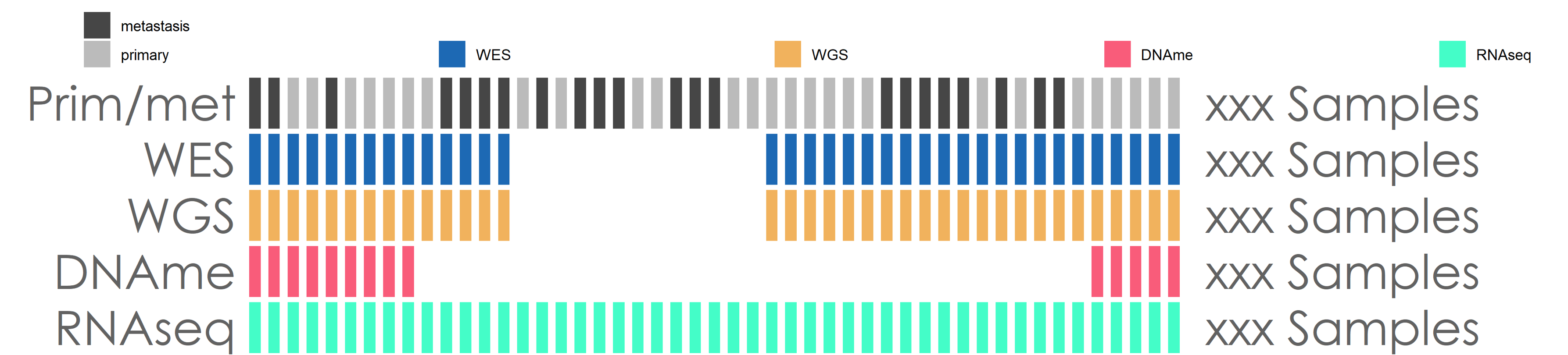

最终效果大概是这个样子：
